300B Grass Pellet Mill Specifications
|Dia. Of die mould
|Wood pellets 250-300kg/h
Feed pellets 600-800kg/h
Note: Three-phase Voltage–380V/50Hz

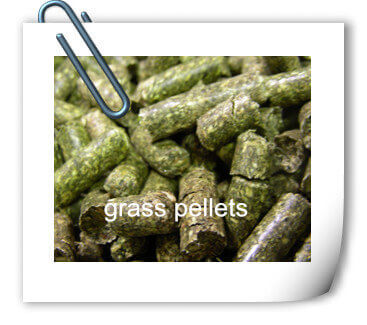

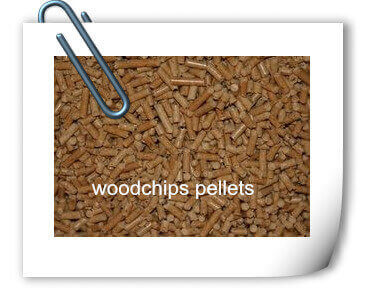

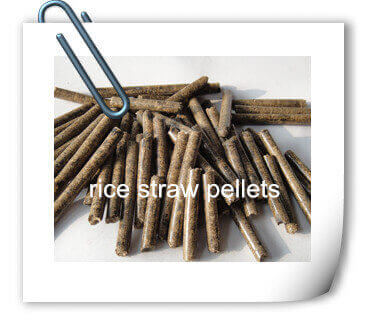

What Raw Materials can be Processed into Biomass Pellets?
There is a wide application of raw materials, such as wood, sawdust, straw, chaff, bamboo shaving, peanut shells, bagasse, alfalfa, and other raw materials, etc. All the forestry and agricultural scraps can be made into small wood pellets. But different materials have different requests for moisture and size. Generally, the moisture of raw material is near 15%. Under this situation, the pellets produced will have perfect quality. But materials whose lignin or sugar content is high will need less moisture. The size of raw materials, should be no longer than the diameter of die holes. For example, if the diameter of the die hole is 6mm, while the size of raw materials is nearly 8mm, there will be accumulation or even damage inside the pellet mill. Anything you can think of raw materials, our biomass pellet mill can help you achieve the aspiration of pelletizing.
Still Hesitating? Act Now, how Amazing the Biomass Pellet Mill is!
The 300B pellet mill is a portable pellet mill designed for making biomass pellets, grass pellets, and wood pellets at home. It is of compact design, little space occupancy, and low power consumption, you can move it freely to anywhere you want to start pellets production. How are the pellets produced by the flat die pellets mill? As its name suggests, a flat die pellet mill works under the running of the main components—dies and rollers. During pelletizing, the die of this mill will turn while rollers keep stationary or the die keeps stationary while rollers turn. By this, a great force will be produced to compress raw materials into die-holes. After a knife cut the columned granules to a uniform length, pellets are finished and will come out from the mill.
Grass Pellet Mill Working Video
Pellet Mill Parts
Regular maintenance and check are good for prolonging pellet mill use life. All of the pellets dies, rollers and other pellet mill parts are processed by a professional technician under strict technical craft. We supply various models of pellet mill dies, you can choose freely according to your needs.
flat die clamp & die mould
flanges & spacers
300B Flat Die Pellet Mill Features
1. CE & BV certified
2. More energy-saving and environmentally friendly.
3. Heavy-duty design for 24/7 working.
4. Roller and flat die are made from precise material of alloy metal, wear-resistant and not easy to break,
5. Quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, able to change new die and rollers fast and conveniently according to your needs.
6. Visibility. It is possible to view into the chamber when pelletizing, so you can solve the problem in time.
7. Simple operation, easy maintenance, and perfect technical design with less labor.
8. Small and lightweight which make it widely used in the home, and small farm.
